Conveying System

Mechanical Conveying (Chain-vey , Bucket Elevator, Screw)

AMH Engineer works closely with our clients in designing mechanical conveying systems that are specifically tailored to their unique needs to ensure product handle with care, efficiency, safety, and sanitation. Mechanical conveying systems transport large amounts of product horizontally, vertically, or at an incline through a powder processing system. Typically, there are a number of moving parts within a mechanical conveying system, such as; belts, buckets, chains and trays that are utilized to move product at a quick pace.

  • Below is the Hygienic type of Mechanical Conveying solution

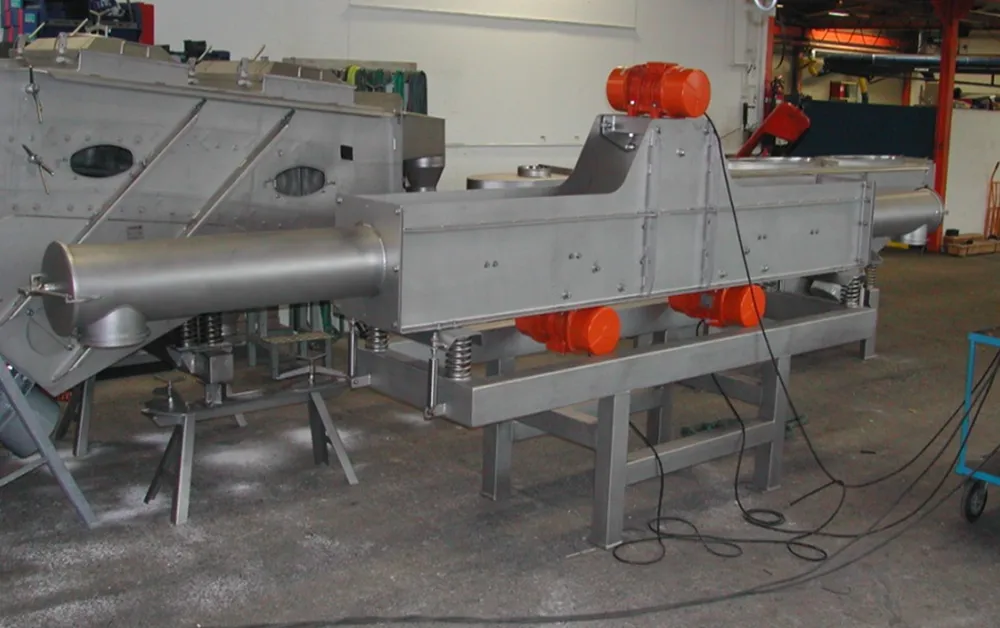

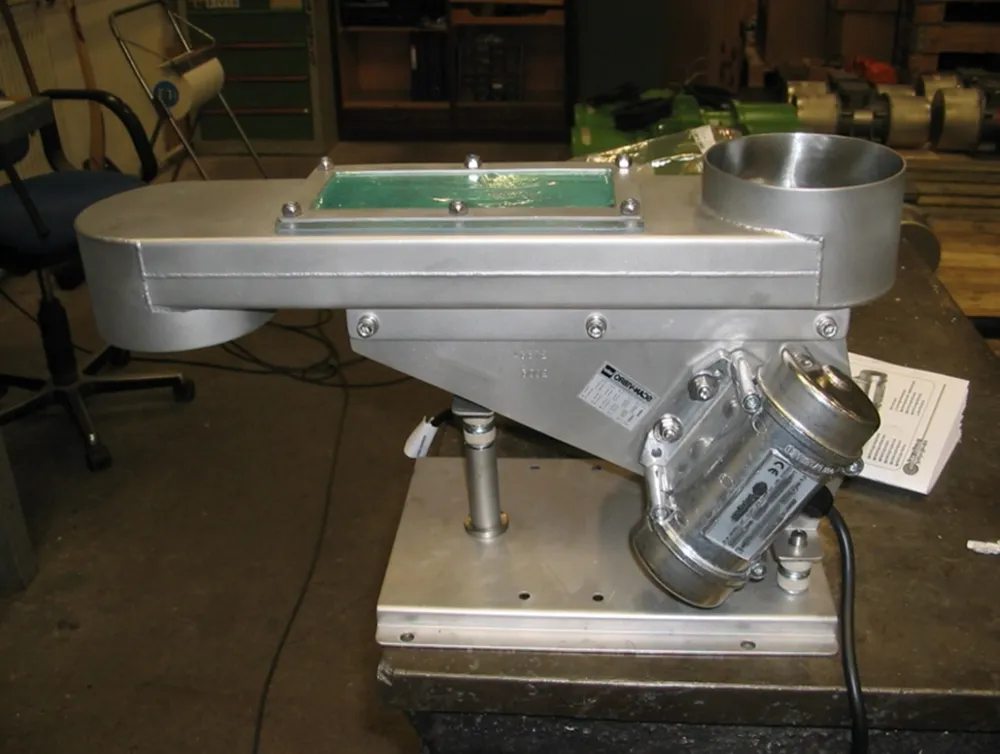

  • Vibrating motion conveyor / Vibrating tube feeder

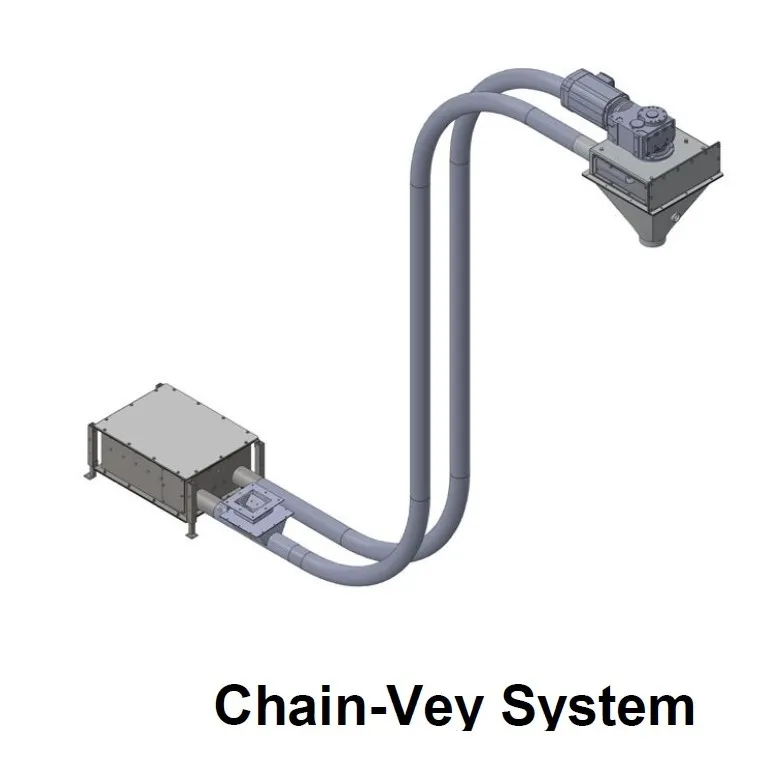

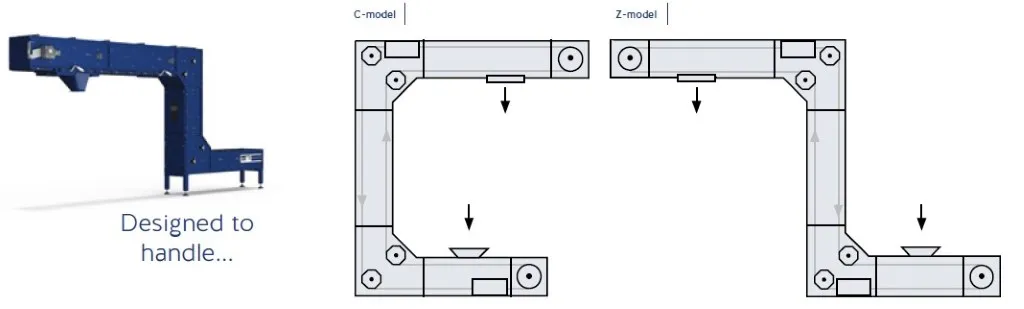

  • Chain-vey
  • Bucket Elevator

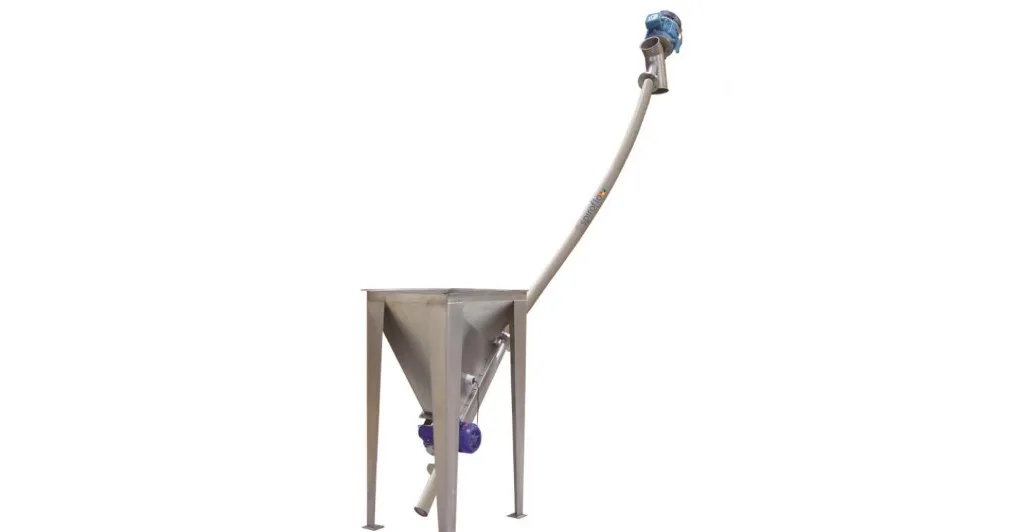

  • Screw conveyor
  • Flexible conveyor
Pneumatic Conveying

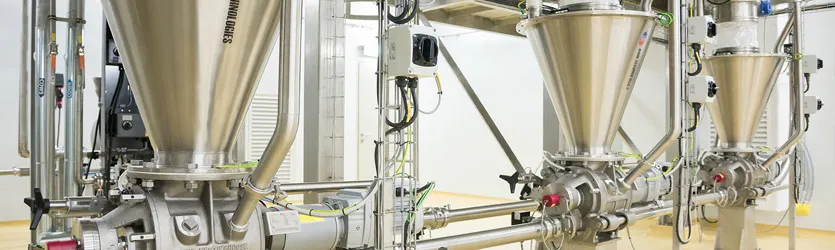

Pneumatic conveying systems is a flexible transportation of a wide variety of bulk solids / powder.
AMH provide solution for all the available type of pneumatic conveying in the market you can find.

Conveying System

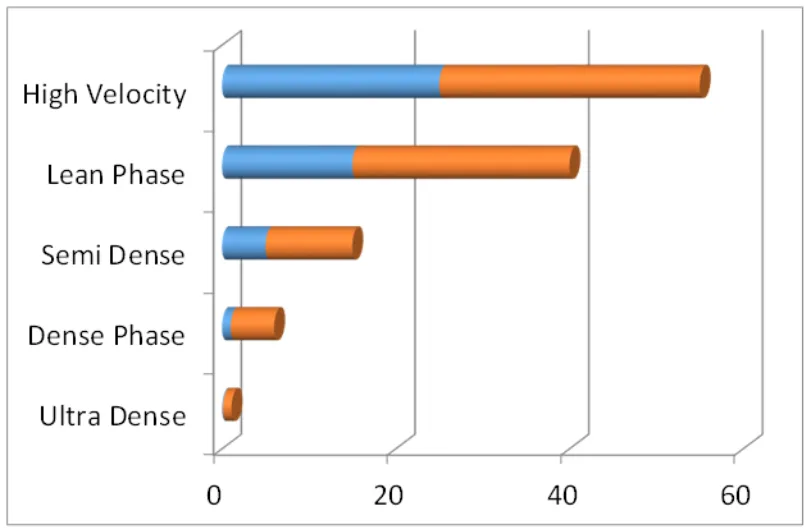

  • Lean Phase Blowing System with Roots Blower, Material Fan, Multistage Fan
  • Lean Phase Vacuum System with Roots Exhauster, Material Fan, Multistage Fan

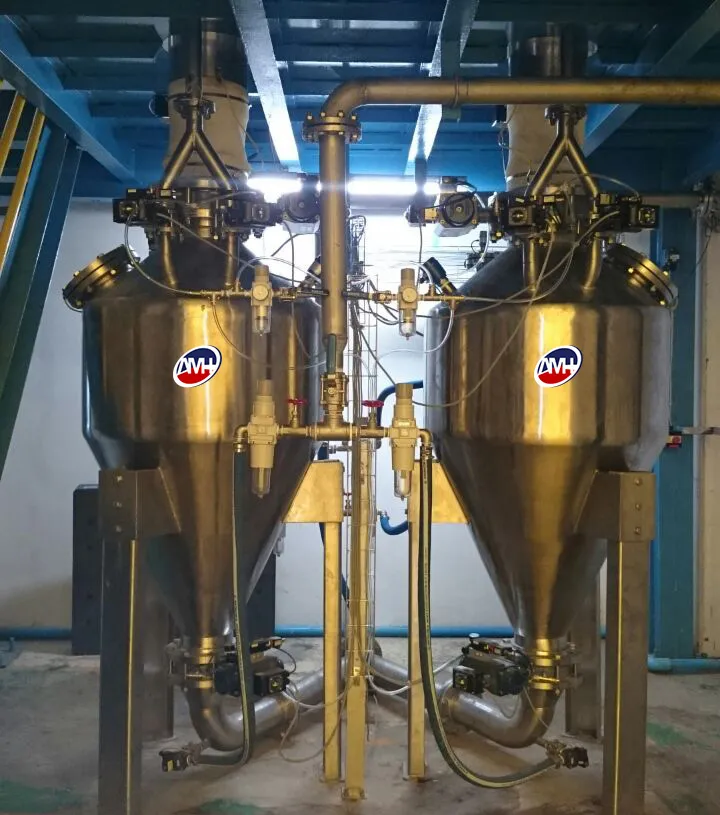

  • Dense Phase Pressure System with Compressor, HP Blower
  • Dense Phase Vacuum System with Vacuum Pump, Hybrid Pump
  • Close loops System with Nitrogen / Co2 gassing

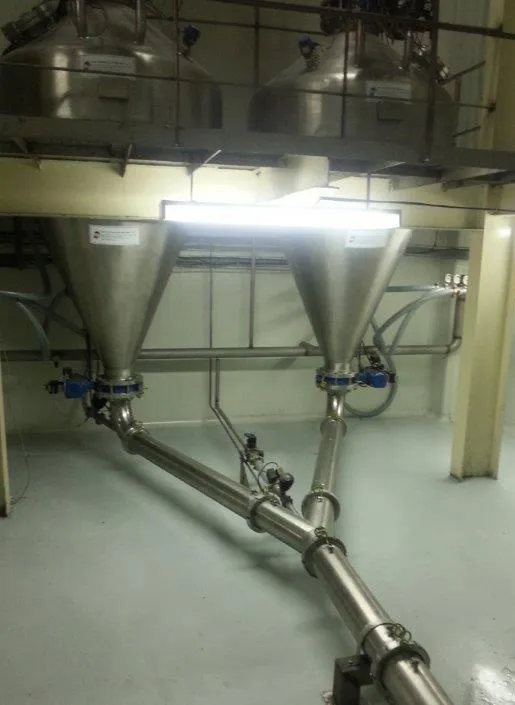

The material is either pushed or sucked through the pipeline by means of a positive or negative displacement blower located on the corresponding end of the pneumatic conveying system. Rotary air lock valves, injector nozzles, or special feed gates feed the product into the pressurized conveying line.

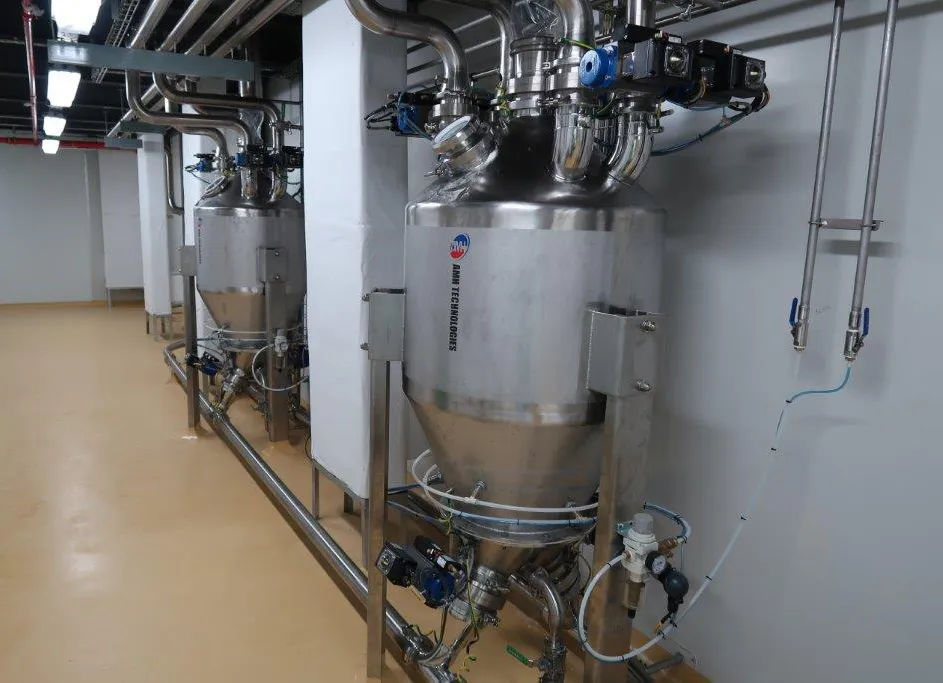

At the end of the conveying line, the material reaches the receiving bin, where it is separated from the air. A filter cleans the exhaust air of residue dust particles. Filter designs vary from jet filters with filter hoses (high filter performance) to filter cartridges, and can optionally be equipped with easy-cleaning, inspection and filter exchange systems.

General features of pneumatic conveying systems are a flexible, clean and residue free transportation of a wide variety of bulk solids, multiple pick up and multiple discharge locations.
