When storing bulk materials, many businesses focus only on capacity and cost — but the truth is, a silo is a highly engineered part of your production chain. The wrong silo can lead to blocked discharge, product contamination, excessive maintenance, and safety hazards.
At AMH Technologies, we design silos that work reliably for decades, with tailored features for your material, process, and site conditions. Here's a complete guide to the factors you should consider before choosing your silo.

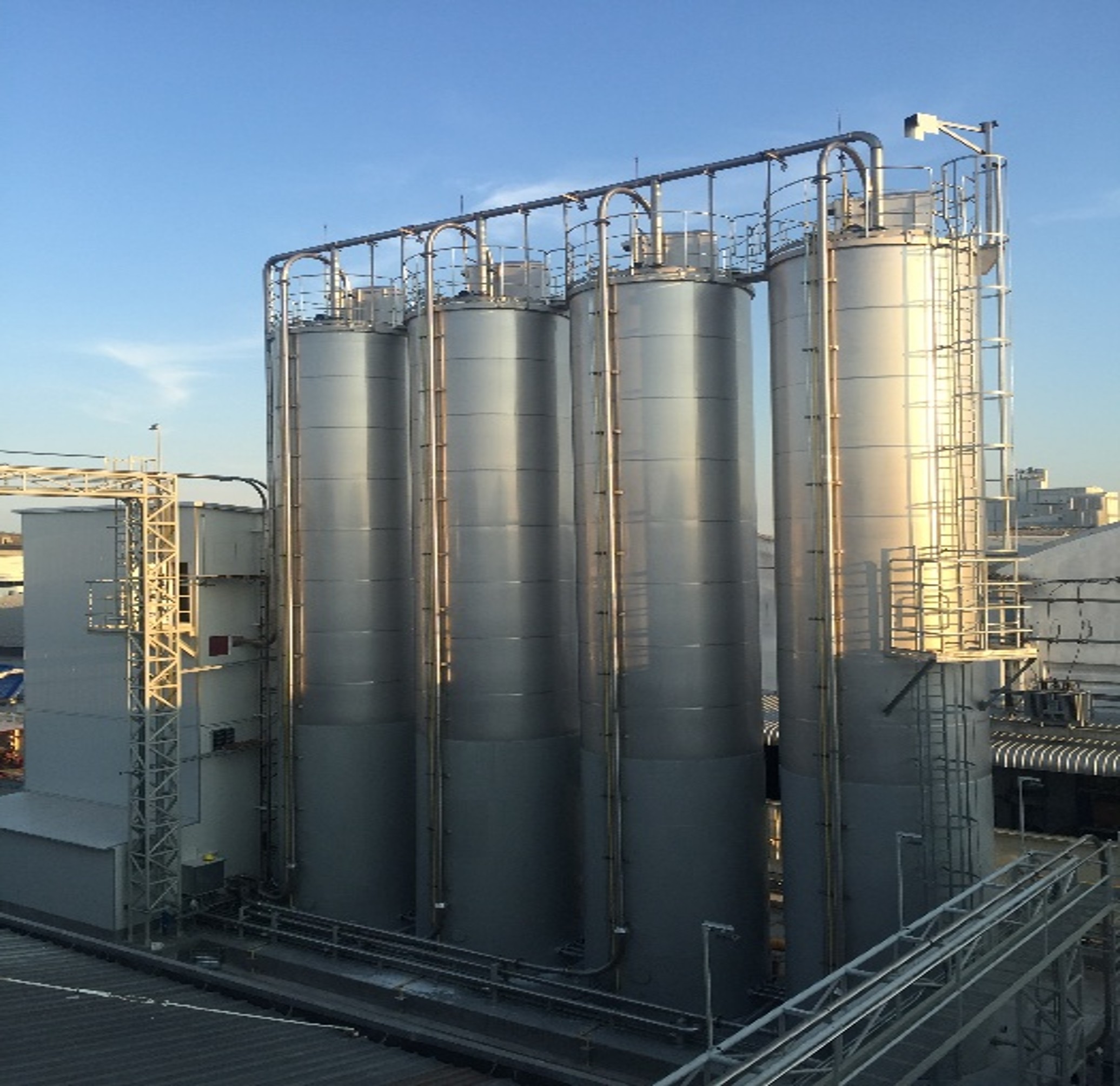

Professional silo design considerations for optimal bulk material storage
Common Silo Problems to Avoid
- Blocked discharge (material bridging or rat-holing)
- Product contamination or spoilage
- Excessive maintenance and downtime
- Safety hazards and regulatory non-compliance
1. Understanding Your Bulk Material
Every bulk material behaves differently inside a silo. A design that works for sugar may fail for cement. That's why material testing is often the first step.
Key properties to know:
- Particle size & shape – Powdery flour flows differently than granular plastic pellets
- Bulk density – Affects structural load; e.g., sand (~1600 kg/m³) vs wheat (~770 kg/m³)
- Moisture content – Hygroscopic products like salt can clump if exposed to humidity
- Cohesiveness – Sticky materials require steeper cone angles or flow aids
- Abrasiveness – Minerals like silica require hardened liners
- Temperature sensitivity – Some chemicals need insulation or cooling jackets
2. Determining Capacity & Dimensions
Capacity is usually expressed in cubic metres (m³) or metric tonnes. The right size depends on:
- Production rates – How much material enters and leaves per hour/day
- Buffer stock – Extra storage to cover supply chain delays
- Batch vs. continuous operations – Continuous plants benefit from larger silos
- Space constraints – Height limitations affect diameter requirements
3. Choosing the Right Construction Material
| Material | Applications | Advantages | Considerations |
|---|---|---|---|
| Mild Steel | General industrial | Cost-effective, strong | Requires coating for corrosion protection |
| Stainless Steel | Food, pharmaceutical | Hygienic, corrosion-resistant | Higher cost |
| Aluminium | Light materials, mobile silos | Lightweight, portable | Lower strength |
| FRP/Composite | Corrosive environments | Chemical resistance | Special fabrication requirements |
Surface finishes:
- Epoxy coatings for corrosion protection
- Food-grade polishing to meet hygiene standards
4. Discharge Design & Flow Control
Poorly designed discharges are the #1 cause of downtime.
Key considerations:
- Cone angle – Steeper for sticky powders (≥ 60°); shallower for free-flowing pellets (~45°)
- Outlet size – Must match downstream conveyor or feeder capacity
- Flow aids – Vibrators, air pads, fluidising nozzles, or mechanical agitators
5. Loading & Filling Methods
How you fill the silo affects both design and material quality.
Pneumatic Conveying
Enclosed, reduces contamination; suitable for light powders.
Mechanical Conveying
Belt, screw, or bucket elevators; better for coarse materials.
Gravity Feed
Low-cost if plant layout allows.
6. Environmental & Safety Considerations
Industrial silos operate under strict safety requirements:
Dust Control:
- Filters and enclosed spouts
- Essential in flour, sugar, and cement industries
Explosion Protection:
- Explosion vents or suppression systems
- Pressure relief valves
7. Maintenance & Accessibility
Downtime costs money. A good silo design makes inspection and cleaning fast.
Features to look for:
- Access ladders, platforms, and inspection hatches
- Modular panel construction for easy repairs
- Internal liners or wear plates in high-wear zones
- CIP (Clean-in-Place) systems for food-grade applications
8. Integration with Your Plant
A silo is part of a bigger system. It must integrate with your:
- Weighing systems – Load cells for real-time inventory tracking
- Automation – PLC/SCADA for level control and monitoring
- Distribution – One silo feeding multiple production lines
Final Word
Choosing the right silo is not just about "how big" it is — it's about ensuring long-term reliability, product quality, and operational efficiency. At AMH, we combine engineering expertise with practical industry knowledge to deliver silo systems that work as hard as you do.
